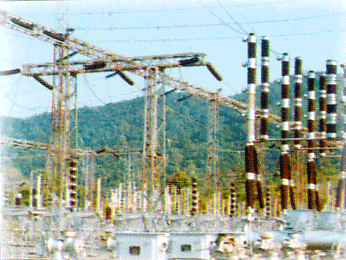

Balimela (Step Up Transformer & Switchyards)

No 3 x 8 (single phase)
Voltage 11/220KV
Capacity: 23400 KVA (Each) (Unit 1 to 6)
30700 KVA RM(Each) (Unit 7 & 8)
Cooling system: OFWF
Make : Russian

Switchyard Arrangement

220 KV Double Bus
(By pass)
No.of outgoing feeders 4

Transmission

Balimela - Talcher : 220 KV(D/C)
Length : 530 KM
Conductor : Zebra (0.4 sq.inch)
Balimela - Upper Sileru : 220 KV (s/c)
Length : 24.6 KM
Conductor: Zebra ( 0.4 Sq.inch)
